10/12 Standard
The Babyplast 10/12 stands out as one of the smallest fully hydraulic injection molding machines available, celebrated for its innovative design and exceptional efficiency. This compact machine occupies less than 0.6 square meters of floor space, making it perfect for environments where space is at a premium. Its unique machine platens serve as mould bolsters, which significantly reduce the cost and size of the moulds required. Combining space efficiency, cost-effectiveness, and quiet operation, the Babyplast 6/12 is an ideal choice for a wide range of injection molding needs.
Features
Clamp Force
10 Ton
Power
Up to 3.5Kw
Tie Bar Spacing
122x122mm

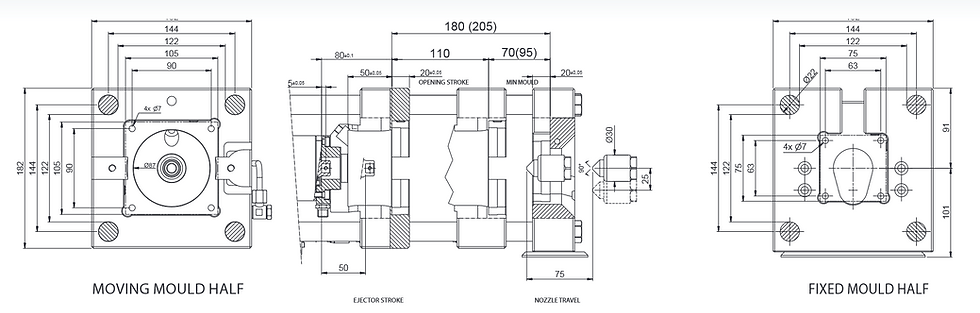

Platen Size
182x182mm
Injection Volume
4.7 – 36 cm³
Piston Diameter
10 – 24mm
Production Ready
One of the biggest misconceptions is that the Babyplast machine is not used in production environments. This is false. 85% of our customer base use the Babyplast for production purposes benefiting from its tiny footprint along with the savings in both tooling costs and energy consumption.
Precision
The Babyplast 6/12 guarantees unparalleled precision thanks to its advanced injection piston and innovative pre-plastification system. This state-of-the-art technology ensures that every detail is executed with the utmost accuracy. This versatility allows for precise customization, ensuring optimal performance and consistency in every molding process. With the Babyplast 6/12, you can expect exceptional quality and precision, making it a standout choice in the world of injection molding.

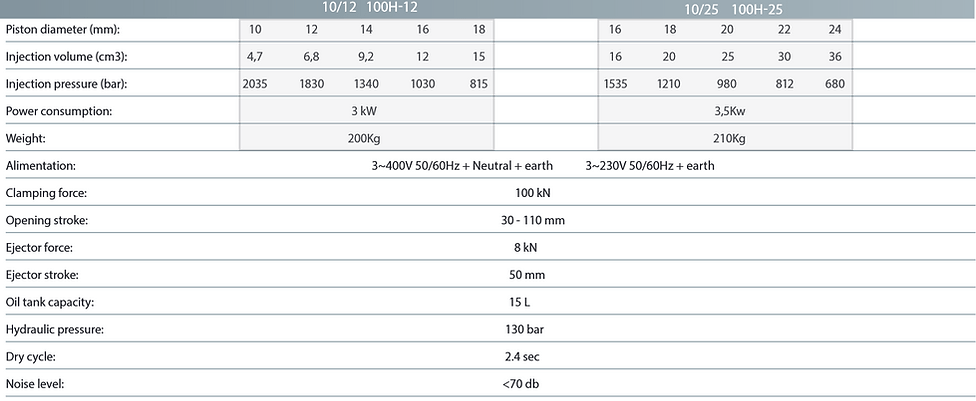

Specifications & Technical Data
- Backlit 8″ colour touch screen display
- 10 different languages can be selected
- Easily accessible pages thanks to multi-function keys
- Quality Control on 4 cycle parameters
- PID temperature control (up to 420°C)
- 4 temperature control zones (optional 5th zone), with mould temperature adjustment or hot runner 230 V
- Manages and stores over 1000 production cycles
- Program back-up USB output
- Ethernet Connection : TCP modbus
- Pressure control with electronic transducer
- Injection and clamp position controlled with linear transducers
- Proportional hydraulics
- Very quiet motor pump controlled by an inverter
- Euromap 67 (optional)

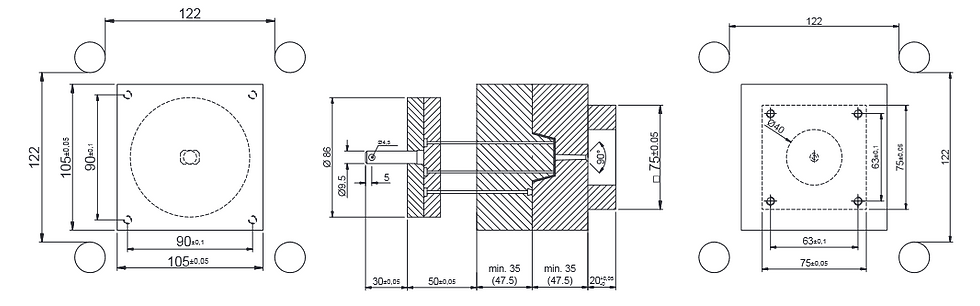

- Savings in the construction of the mould thanks to the machine platens which act as bolsters
- Low running costs – installed power 3 kW – cooling approximately 120 l/h
- Possibility to move the injection point off centre – 5 pistons from 3 to 15 cc and injection pressures from 650 to 815 bar
- Output for auxiliary control
- Cooling circuit (6 zones)
- Temperature tolerance band
- Hydraulic ejection with ejector return sensor
- Air blow and core pull functions
